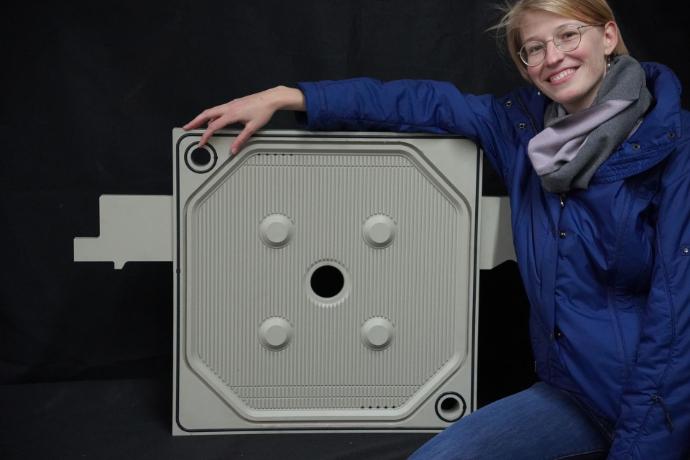

Filter Plates

We offer chamber filter plates and membrane plates;

- Chamber filter plates form simple chamber between 2 plates where the cake is formed while liquid is evacuated through appropriate channels in the plates.

- Membrane plates have flexible walls which allow for local filter cake squeezing for further more liquid evacuation.

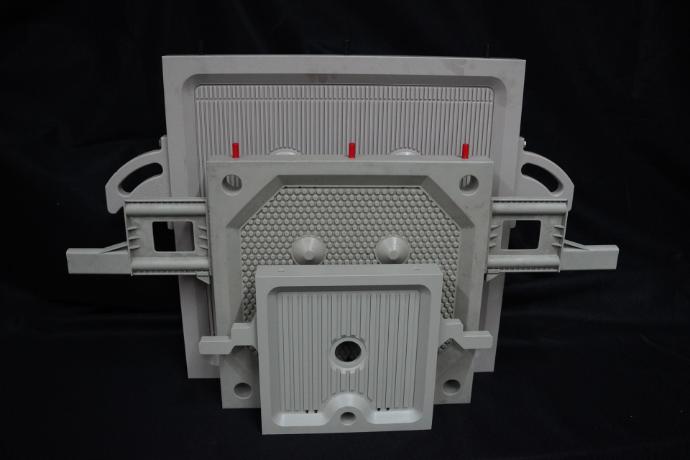

Filter plates also vary in size, cake thickness, geometry (open or leak-free), material (PP, PTFE, cast-iron) according to applications (e.g. food industry)


Plate Size Description Filtrat evacuation Cake thickness

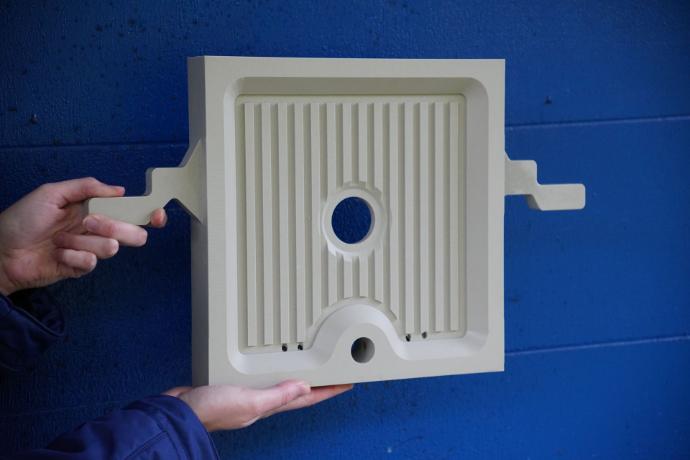

300 x 300 mm Medium Plate closed, 1 central outlet 30 mm
470 x 470 mm Medium Plate open 25 mm
630 x 630 mm Medium Plate open 25 mm
630 x 630 mm Medium Plate closed, 4 outlets 25 mm
630 x 630 mm Medium Membrane Plate closed, 4 outlets 35 mm
630 x 630 mm Kammer- Zwischenelement closed, 4 outlets 20 mm
630 x 630 mm Medium Plate closed, 4 outlets 30 mm
630 x 630 mm Medium Plate closed, 2 outlets, leak-tight,
 80°C resistant		 25 mm
630 x 630 mm Medium Plate closed, 2 outlets 30 mm
800 x 800 mm Medium Plate open 30 mm
800 x 800 mm Medium Plate open 25 mm
all plates on stock, also appropriate head&end plates


Other plates on demand
