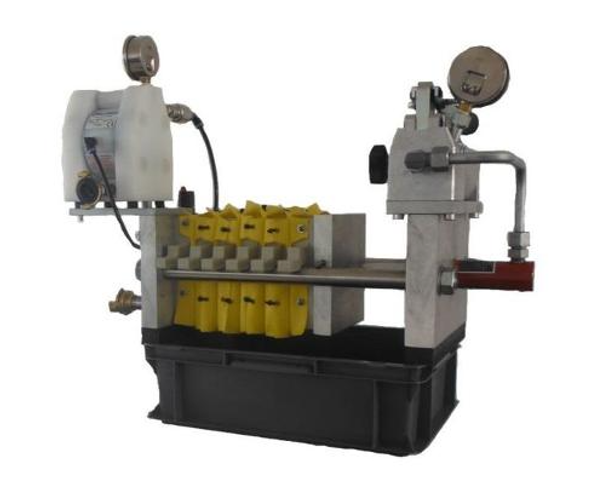

Mobile filter press SMM - 1 - 150
General parameters:
Total weight:
28 kg
Dimensions:
600 x 400 x 500 mm
Plate dimension:
150 x 150 mm
Max. medium pressure:
8 bar
Hydraulic closing pressure:
350 bar
Feed pump:
max. 25 l/ min
Mounting:
modular
Number of chambers/ total chamber volume:
5/ 2 l
Filtration surface:
approx. 0,14 m2
Discharge box volume:
approx. 10 l
Easily dismountable into:
- cake container
- filtration unit and pump
Ideally suitable for:
- filtration and reuse of liquids
- lab applications for testing
Equiped with:
- hand pump with pressure gauge for closing pressure
- sludge pump
- cake box for compressed sludge
- necessary piping

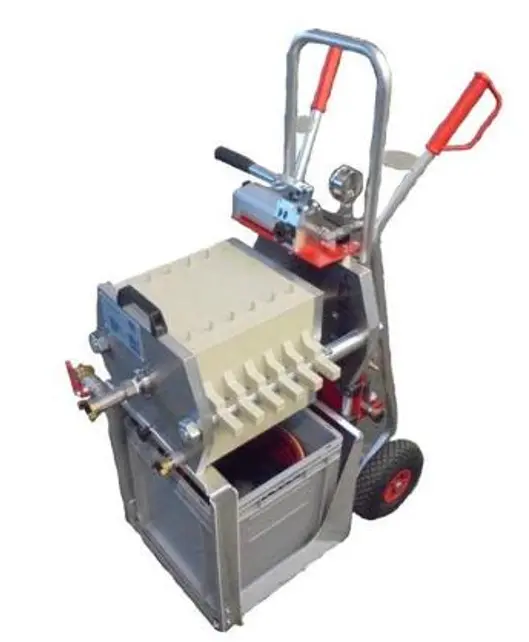

Mobile filter press SMM 2
General parameters:
Total weight:
90 kg
Dimensions:
850 x 850 x 1300 mm
Plate dimension:
300 x 300 mm
(cake thickness: 300 mm)
Max. medium pressure:
8 bar
Hydraulic closing pressure:
400 bar
Feed pump:
max. 78 l/min
Mounting:
modular
Number of chambers/ total chamber volume:
5/ 9 l
Filtration surface:
approx. 0,55 m2
Discharge box volume:
approx. 60 l
Easily dismountable into:
- dolly/ creeper
- discharge box
- pressuring unit
- feed Pump
Ideally suitable for:
- filtration & reutilization
- joint cutting
- stone sawing
Equiped with:
- handpump with manometer to close the press via hydraulic cylinder
- feed pump
- discharge box for pressed cake
- all necessary hose connections
